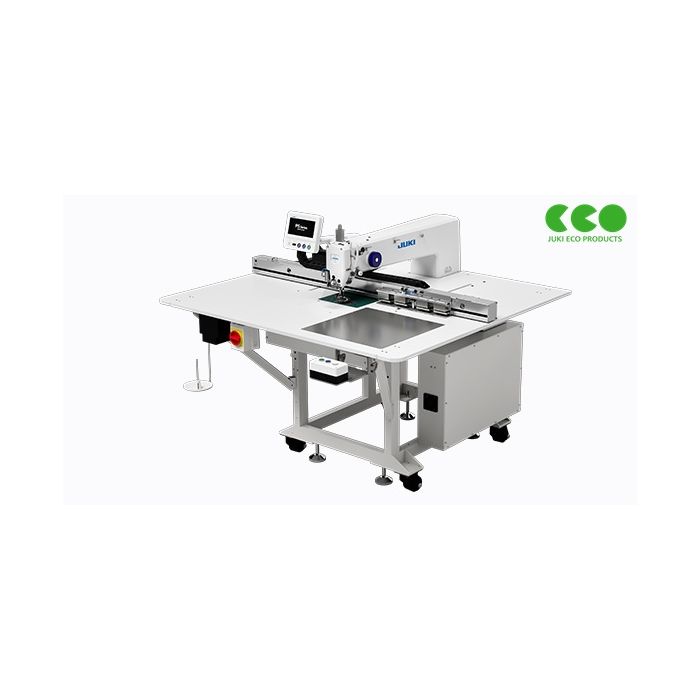

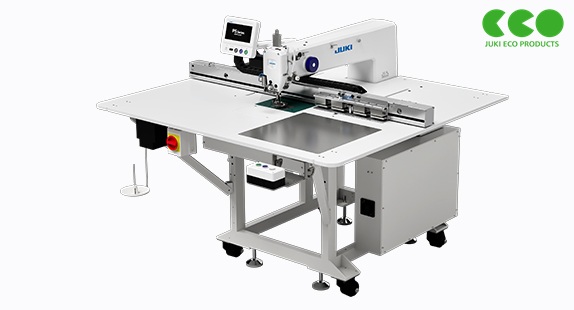

PS-810

Pattern Seamer

Passing on skills that promise stable quality. Template sewing immediately transforms beginners into skilled operators and passes on sewing expertise into the future.

Feed accuracy improved to 0.05mm

The feed pitch can be set in 0.05mm increments. When sewing decorative stitching, cross stitching can be accurately reproduced at intersections. The feed accuracy has been significantly improved compared to the 0.5mm feed accuracy of the PS-800.

Larger vacuum now available for retrofitting

The vacuum size in the same sewing area has been increased by 1.25 to 1.3 times compared to previous models. In addition, a vacuum unit can be retrofitted even on vacuum-less models. Furthermore, a vacuum unit can now be installed on the H model as well.

10045 added to sewing area

We responded to feedback that the 8045 was too short for sewing body parts and the 13085 was too large. The depth has been expanded from 80 to 100, while maintaining the 45mm depth. This makes it possible to sew body parts within the space available on the production line.

Laser cutter specification added to H model

A laser cutter specification has been added to the H model. In addition to cutting, laser cutters are also used for punching holes and welding end threads. For safety reasons, the laser cutter cannot be retrofitted, so the factory specifications are used.

Optional Additions

1) Bobbin Changer The cost-effective bobbin changer BK-11 can now be installed.

2) Needle Thread Clamping Device By clamping the needle thread at the beginning of sewing, bird's nests are prevented at the start of sewing, ensuring a stable start to stitching.

3) Dry Hook By using a special carbon material on the lace surface, we have developed the world's first dry hook for a double-capacity, fully rotating hook. The semi-dry needle bar mechanism and oil-free hook enable completely oil-free sewing. *Please operate at a speed of 2500 sti/min or less.
