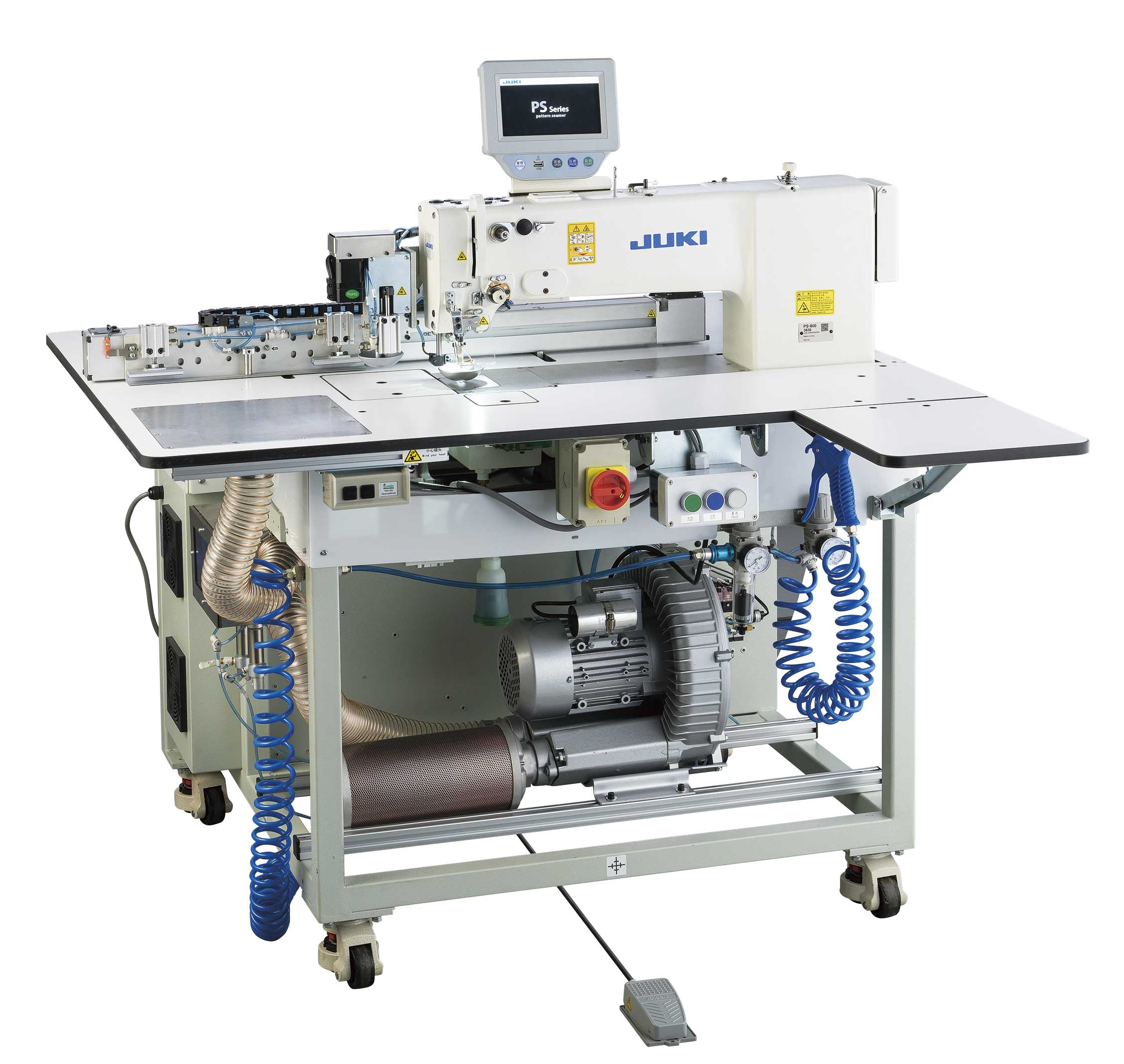

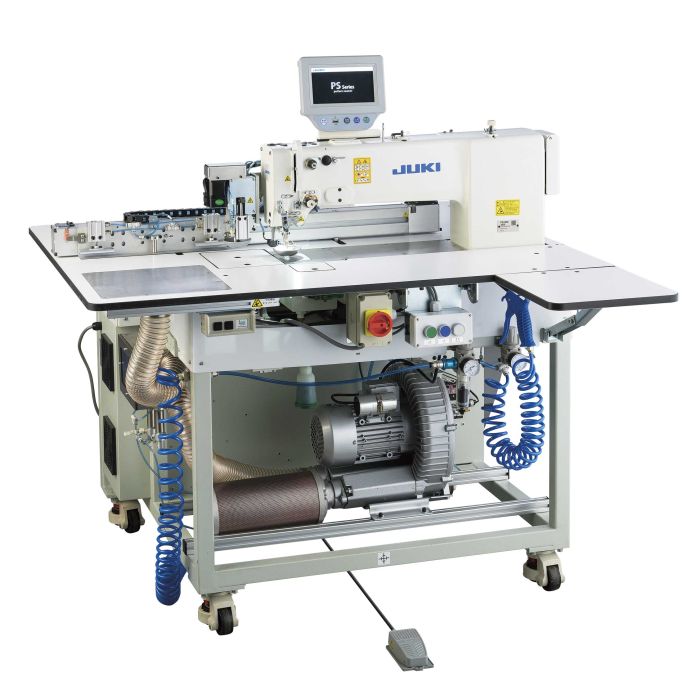

PS-800SB-3830 and PS-800HB-3830

Pattern Seamer

Your Ingenuity creates opportunities for automation. The machine head adopts the oilfree lubrication technology with supporting various sewing and materials.

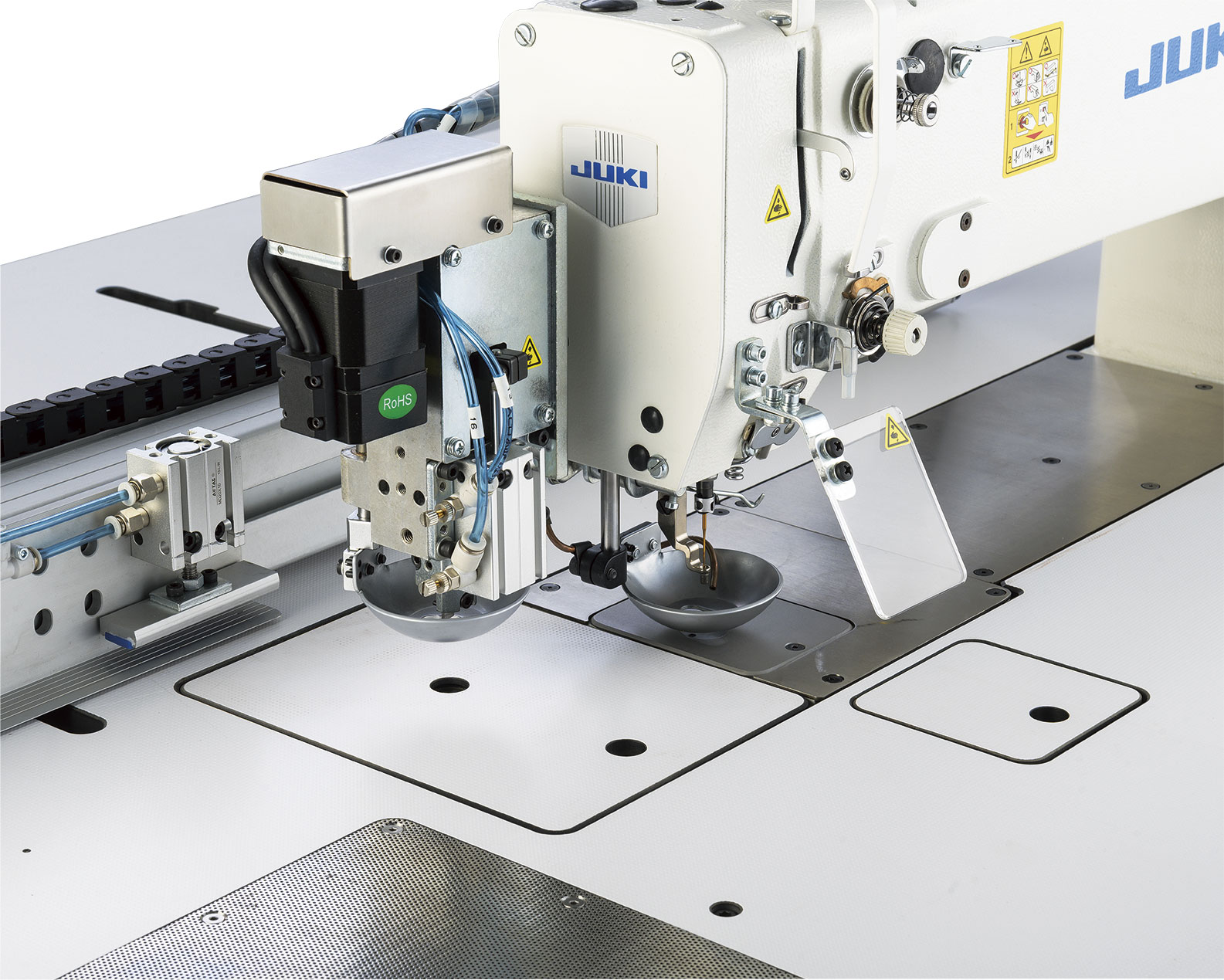

Rotary twin knives (upper and lower type)

The rotary twin knives (upper and lower type) can cut curved lines with the original soft texture of the fabric without black burning the material or unpleasant odor caused by the laser cutter.

Adopts a full-rotary double-capacity hook

The same full-rotary double-capacity hook as the PS-800 series is used. It provides stable sewing and reduces the time required for changing the lower thread.

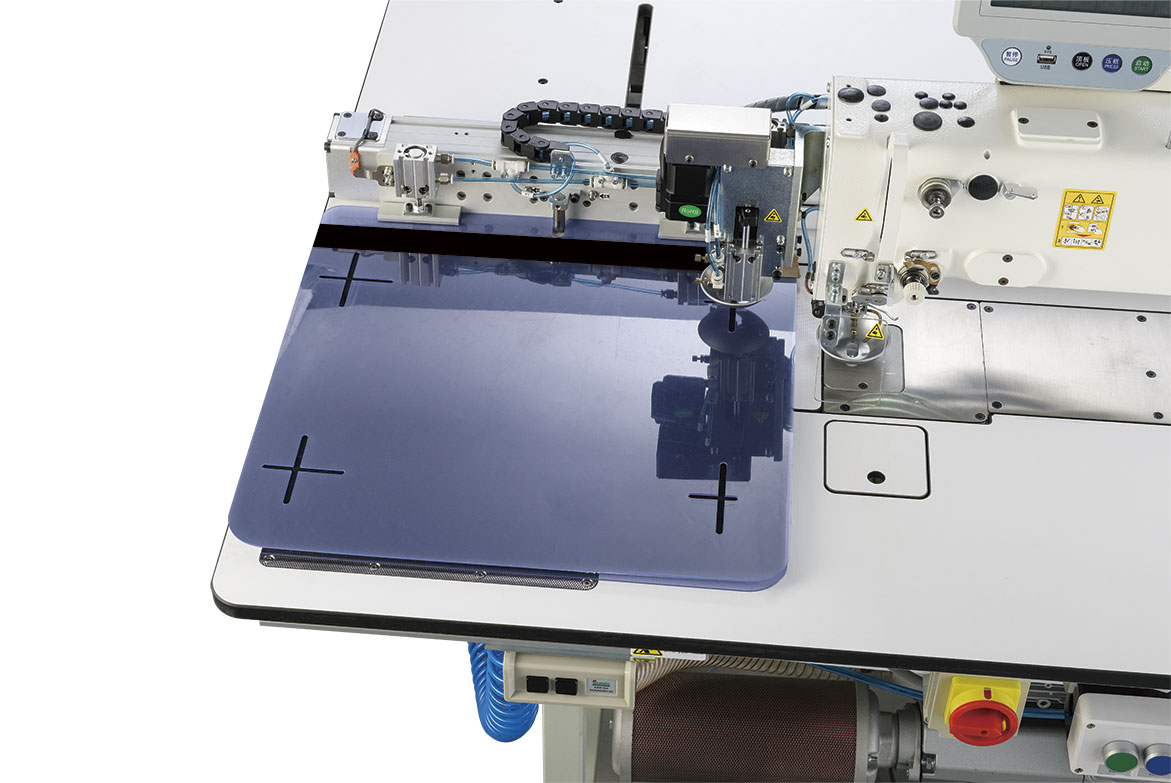

Fabric Vacuum Function 〈PS-800SB3830AKKV, PS-800SB3830ZKZV〉

Easy to set the sewing materials since the vacuum device works under the table. It helps to set softy/ light fabric.

Operation panel

The sewing pattern data format are supports DXF, AI, PLT, and DST. Sewing pattern data in these formats are widely used in many sewing plants. As a result, the operation panel is able to use the customers’ existing sewing pattern data immediately. As many as 999 sewing patterns can be saved on the large-capacity memory of the operation panel. (Editing software is included with the accessory.)

Patterns are identified by means of RFID/Barcode reader

Sewing patterns are automatically identified by means of RFID/ Barcode reader to automatically call up the relevant sewing program, thereby starting sewing quickly.

Intelligent Medium-Presser Feet

It is possible to change the intermediate presser height at its lower dead point steplessly during sewing. This feature is particularly effective when sewing multi-layered portions of material. Since the material is stably held by the intermediate presser, sewing troubles such as stitch skipping and thread breakage are prevented.

Operation switch

The Operation switch operates up and down, so the operator can adjust it to a position where it is easy to work. Reduces operator fatigue when sewing for long periods of time.
