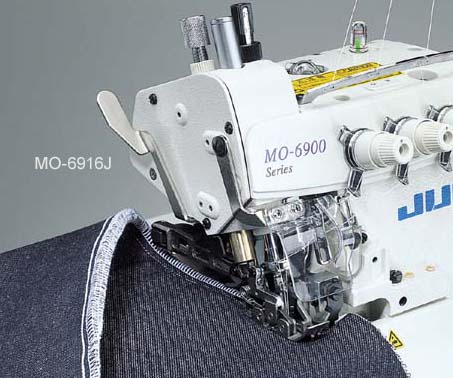

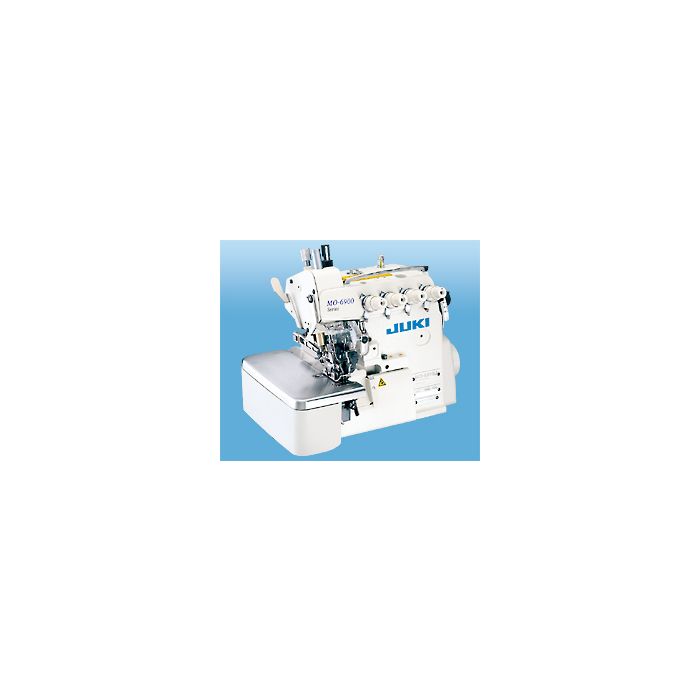

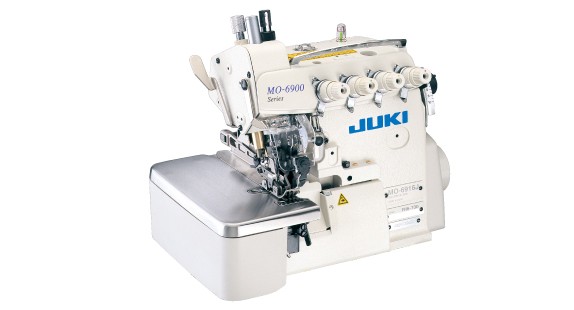

MO-6900J Series
Overlock / Safety Stitch Machine for Extra Heavy-weight Materials
An advanced full-featured machine that is ideally suited to the sewing of extra heavy-weight materials. The machine incorporates a mechanism and parts that are optimum for the sewing of extra heavy-weight materials, such as an extra high-lift type upper looper, tractor foot, and coarse type feed dog. It demonstrates an excellent performance ability in the sewing of various kinds of heavy-weight materials such as jeans, raised fabric materials, mats, and carpets.
An advanced full-featured machine that is ideally suited to the sewing of extra heavy-weight materials.
The MO-6900J Series comes with a newly-developed feed mechanism that moves the top and bottom feed separately. With its improved feeding capacity and stronger cloth-biting force, the feed mechanism prevents uneven material feed when sewing extra heavy-weight materials.
| Model name | MO-6904J | MO-6914J | MO-6916J |
|---|---|---|---|
| Stitch type | 1-needle overlock | 2-needle overlock | Safety stitching |
| Max. sewing speed | 6‚000sti/min | ||
| Stitch length | 2.5～5mm | 2.5～4mm | 2.5～5mm |
| Needle gauge (mm) | - | 2.6 | 4.8 |
| Overedging width (mm) | 4.8 | 6.4 | 4.8‚ 6.4 |
| Differential feed ratio | Gathering 1:1.75 (max. 1:3.8) Stretching 1:0.7(max. 1:0.6) | Gathering 1:2 (max. 1:3.8) Stretching 1:0.8 (max. 1:0.6) | Gathering 1:1.75 (max. 1:3.8) Stretching 1:0.7(max. 1:0.6) |
| Needle | DO×5 (excluding some subclass model) | ||

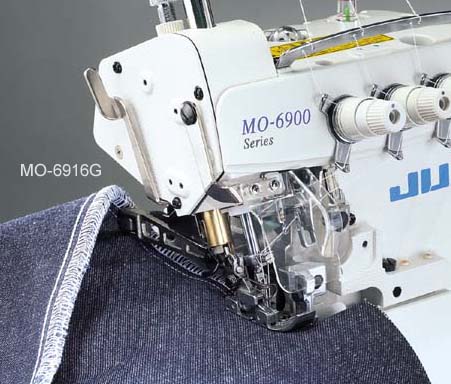

| Model name | MO-6904G | MO-6914G | MO-6916G |
|---|---|---|---|
| Stitch type | 1-needle overlock | 2-needle overlock | Safety stiching |
| Max. sewing speed | 6‚000sti/min | ||
| Stitch length | 2.5～5mm | 2.5～4mm | 2.5～5mm |
| Needle gauge (mm) | - | 2.6 | 4.8 |
| Overedging width (mm) | 4.8 | 6.4 | 4.8‚ 6.4 |
| Differential feed ratio | Gathering 1:1.75 (max. 1:3.8) Streching 1:0.7(max. 1:0.6) | Gathering 1:2 (max. 1:3.8) Streching 1:0.8 (max. 1:0.6) | Gathering 1:1.75 (max. 1:3.8) Streching 1:0.7(max. 1:0.6) |
| Needle | DO×5 (excluding some subclass model) | ||
Gallery
