Polo Shirt Placket Automat
Advance My Company With Smart Solutions
AvailabilityIn stock
SKU
JTR-DDL9000B/PPA
JTR-DDL9000B/PPA

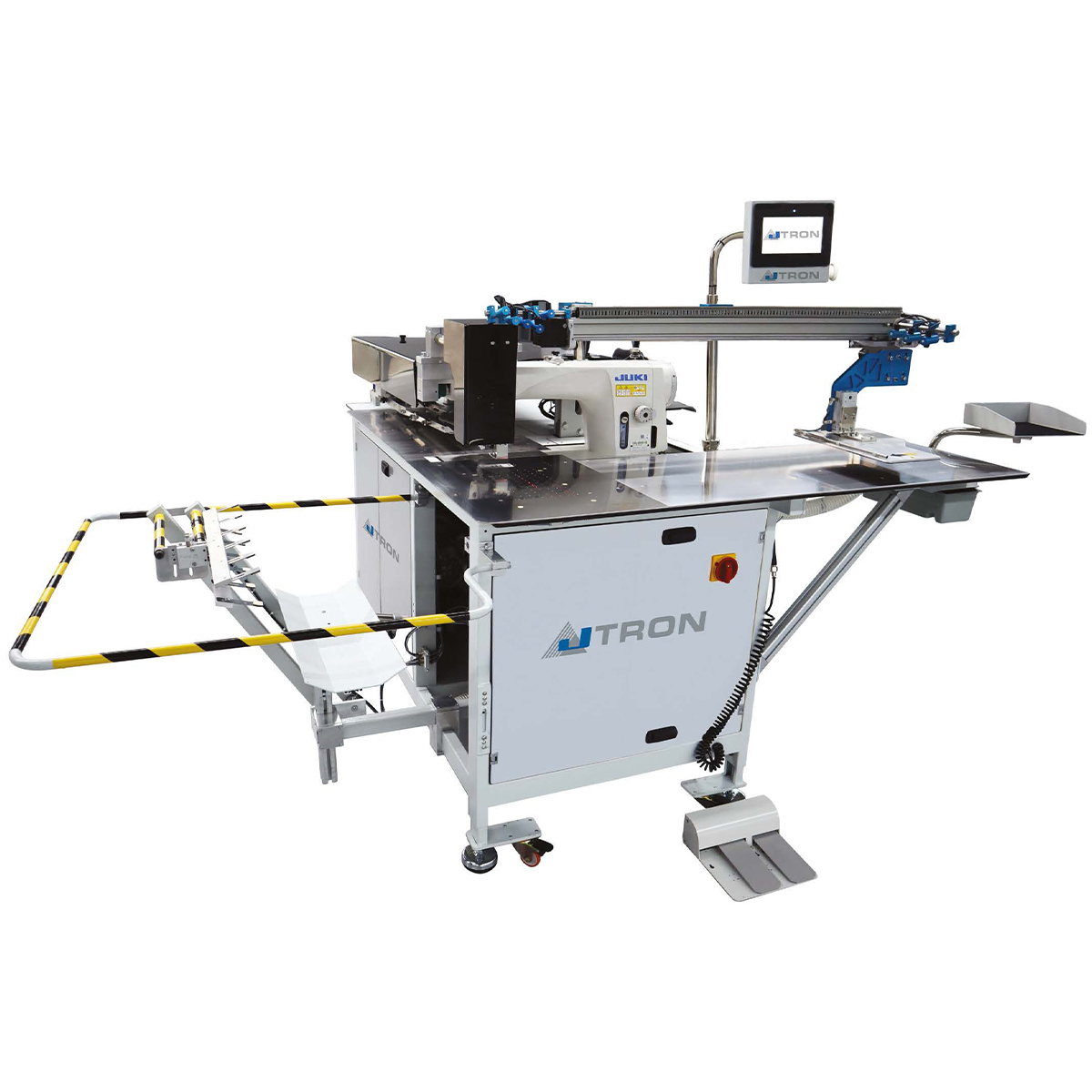

Polo Shirt Placket Automat
This machine automates the steps from run-stitching to cutting in the sewing of polo shirt plackets.
Front placket cutting function with a single-/double-knife
A single machine can sew both single and double front plackets by quickly switching between single and double knives.
Highlights
- Front placket cutting feature with single or double knife
- Center knife system can be adjusted together with the seam
- Automatic feeding and stacking units
- Adjustable desing patterns of front placket via touchscreen
- Thread breakage sensor reduces production losses
Model name | JTR-DDL9000B/PPA |
---|---|
Machine Head (Standard) | DDL-9000B |
Motor | Juki Servo Motor IPW550 |
Max. sewing speed | 4.000 rpm |
Capacity | 3.000 polo shirts / 9 hours |
Daily Piece Counter | Available |
Thread Breakage Detection | Available |
Min. - Max. Placket Length | 30 mm - 240 mm |
Min. - Max. Placket Width | 2 mm - 55 mm |
Min. - Max. Stitch Length | 2 mm - 4.5 mm |
Needle Type | GB / DPX5 #11 |
Power Requirement / Power Consumption | Single-phase 220V-240V 50Hz / 1150VA |
Compressed Air / Air Consumption | 6 Bar - 6 L / min |
