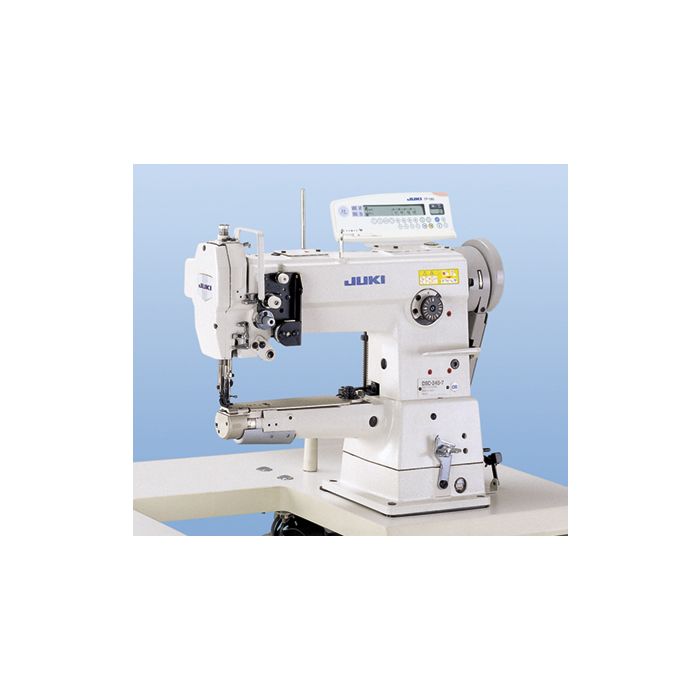

DSU-145, DSU-145-7

Cylinder-bed, 1-needle, Top and Bottom-feed, Lockstitch Machine
DSU-145-7 (with automatically lubricated for hook)
DSU-145 (with automatically lubricated for hook)

Model	DSU-145-7	DSU-145
Max. sewing speed	2‚000sti/min
Max. stitch length	6mm
Presser foot	By knee: 13mm	By knee: 15mm
Alternating vertical movement	2～5mm
Needle	DP×17 (#21) #14～#22
Thread	#50～#8‚ B33～B92‚ Nm=120/3～30/3
