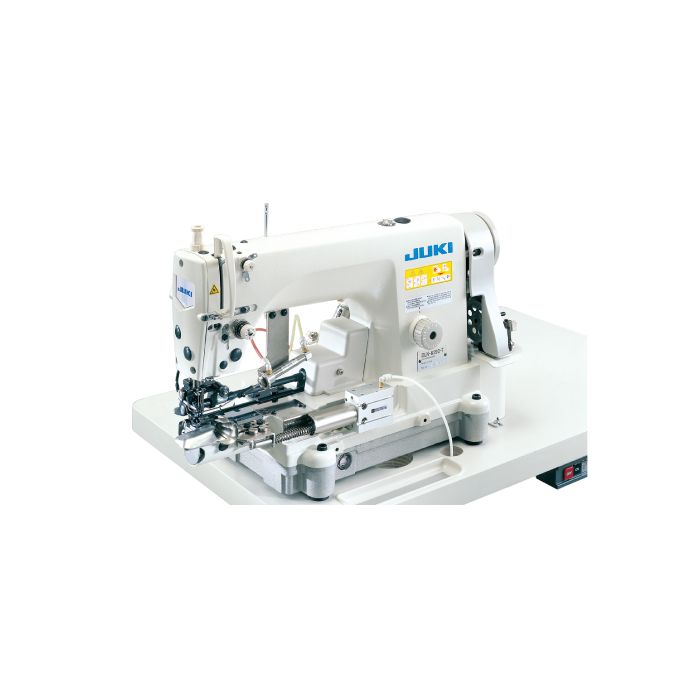

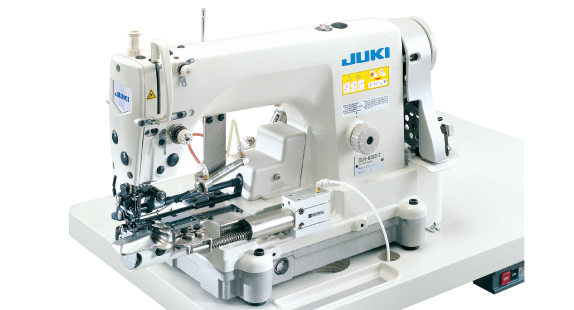

DLN-6390-7 and DLN-6390
High-speed, Cylinder-bed, 1-needle, Needle-feed Lockstitch Machine with Large Hook
The last word in cylinder-bed lockstitch machines, intended for bottom hemming processes for jeans, casual pants, and work uniforms has been launched.
The DLN-6390 Series offers excellent seam quality and sewing capabilities.
- The needle bar stroke is as high as 35mm. This offers increased penetration of the needle into the material to improve adaptability to heavy-weight materials.
- The machine demonstrates excellent sewing capabilities, when sewing heavy-weight denim or multi-layered portions, that free it of sewing troubles such as stitch gathering, stitch skipping, and needle breakage.
- The machine is able to sew material with a low presser foot pressure while preventing the material from flapping.
- As a result, the material can be sewn free of puckering.

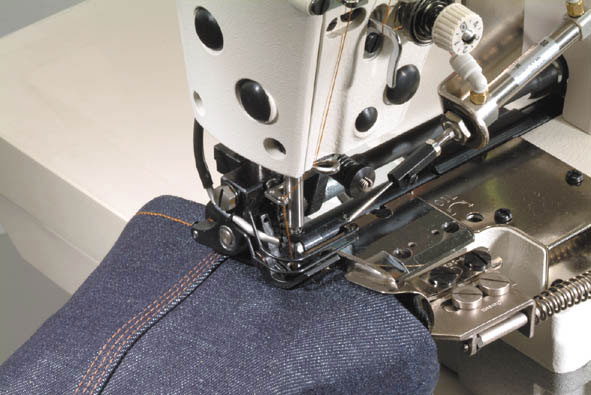

- The top- and bottom-roller style feed mechanism forms seams with increased consistency to achieve improved hemming quality while reducing uneven hems.

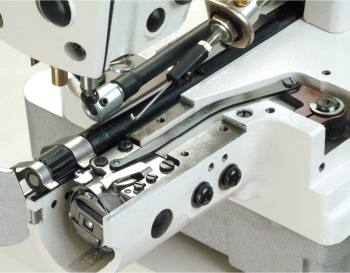

Highly consistent and reliable thread trimmer mechanism.
- The DLN-6390 Series employs a highly reliable horizontal thread trimming mechanism that cuts thick thread without fail.
- The entire knife unit can be installed/removed.
- The moving knife position can be easily adjusted.
- The knife unit is of a bed device type. This means that adjustment of the knife unit is not required after removing the throat plate.
- Every time that operation of the thread trimmer occurs, the air blower keeps the knife clean by blowing off thread chips from the blade, ensuring the reliable operation of the thread trimmer.
Model | DLN-6390 | DLN-6390-7 |
---|---|---|
Max. sewing speed | 5,000sti/min | |
Stitch length | Standard gears: 3.2mm (2.8mm) / Supplied gears: 2.3mm, 3.6mm / Optional gears: 2.1mm, 2.5mm, 4.2mm (utilized by changing pitch conversion gears) | |
Presser foot | Max. 14mm | |
Binder open / close type | Manual type | Driven by air cylinder |
Cylinder-bed diameter | 180mm | |
Needle | UY180GVS Nm140 range of use: Nm90~Nm150 (equivalent to #14~#22.5) |
