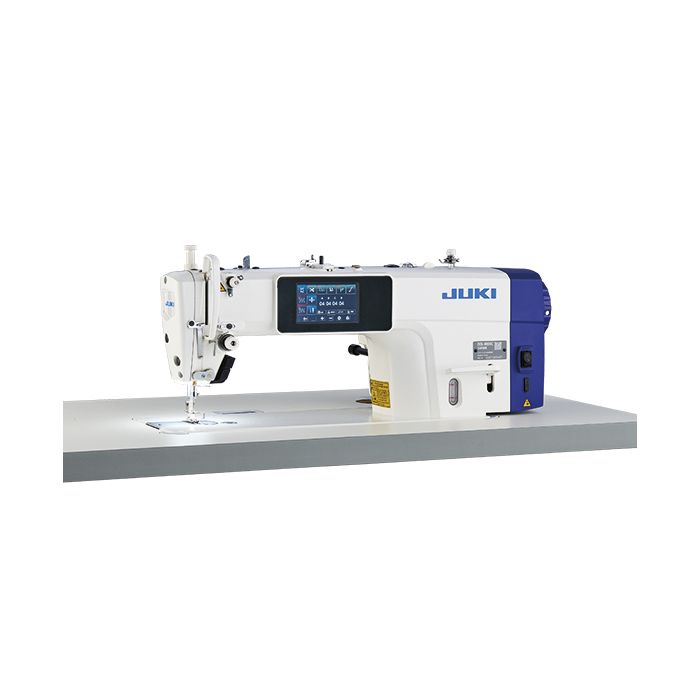

DDL-8000C

Direct-drive, High-speed, 1-needle, Lockstitch Machine with Automatic Thread Trimmer (Electric Feed Length Control System )

Equipped with a new function Electric Feed Length Control System (EFLeCS): This machine is a long-arm direct-drive lockstitch machine with a thread trimmer and integrated electrical control box.

Condensed stitch: The condensed stitch can be set from the panel to fine-tune the stitch length at the end of a seam to prevent the seam from unraveling.

Design stitch: Digitalized needle feed mechanism enables sewing of many different sewing patterns with ease.

EFLeCS with various functions

Electric Feed Length Control System (EFLeCS) with a digital pitch. With the stepping motor used to control the feed mechanism, the feed pitch is adjusted with the color LCD touch panel control. The high-clarity display of the touch panel promises excellent visibility to enhance workability. Reverse feed length setting and condensed stitch are possible. The machine is also able to sew design stitch.

The shorter-thread trimming mechanism

The length of thread remaining on the material at the end of sewing is 3.5 mm. The machine adopts a double-blade drive rotary thread-trimming mechanism. By trimming thread just under the needle and by using digital pitch condensed stitching, this thread-trimming system consistently leaves no more than 3.5 mm of remnant thread on the material at sewing completion.

Feed-amount fine-adjustment function

Stitch length can be controlled sensibly with reverse feed lever equipped as standard. The machine newly has a choice of stitch length adjustment function by knee lifter. This function makes possible to adjust stitch length without using hands, so it helps difficult processes which require handling by both hands.

One-touch change over function

The stitch length and maximum sewing speed can be changed over with one-touch action of the hand switch.

Control box & USB port

The control box is integrated with the machine head to facilitate machine setup, and now comes with a USB port for charging. Since the USB port is provided as standard for the control box.

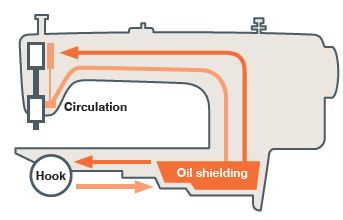

Oil Shielding System

In order to prevent oil stains on sewing products, the sewing machine has adopted the “Oil Shielding System” which is integrated into the sewing machine bed. The needle bar is lubricated with a smaller quantity of oil as compared with the conventional model. In addition, oil which externally splashes is shielded by the frame oil recovery mechanism and automatic oil circulation mechanism. This structure contributes to the achievement of the maximum sewing speed of 5,000sti/min and also to increased productivity.

Elimination of oil stains on sewing products

Oil is stored in the oil-shielded made of highly rigid aluminum die cast which is integrated into the machine head and provides increased cooling performance. The oil-shielded has increased sealing performance as compared with a plastic oil tank and effectively prevents oil leakage and tank breakage.
