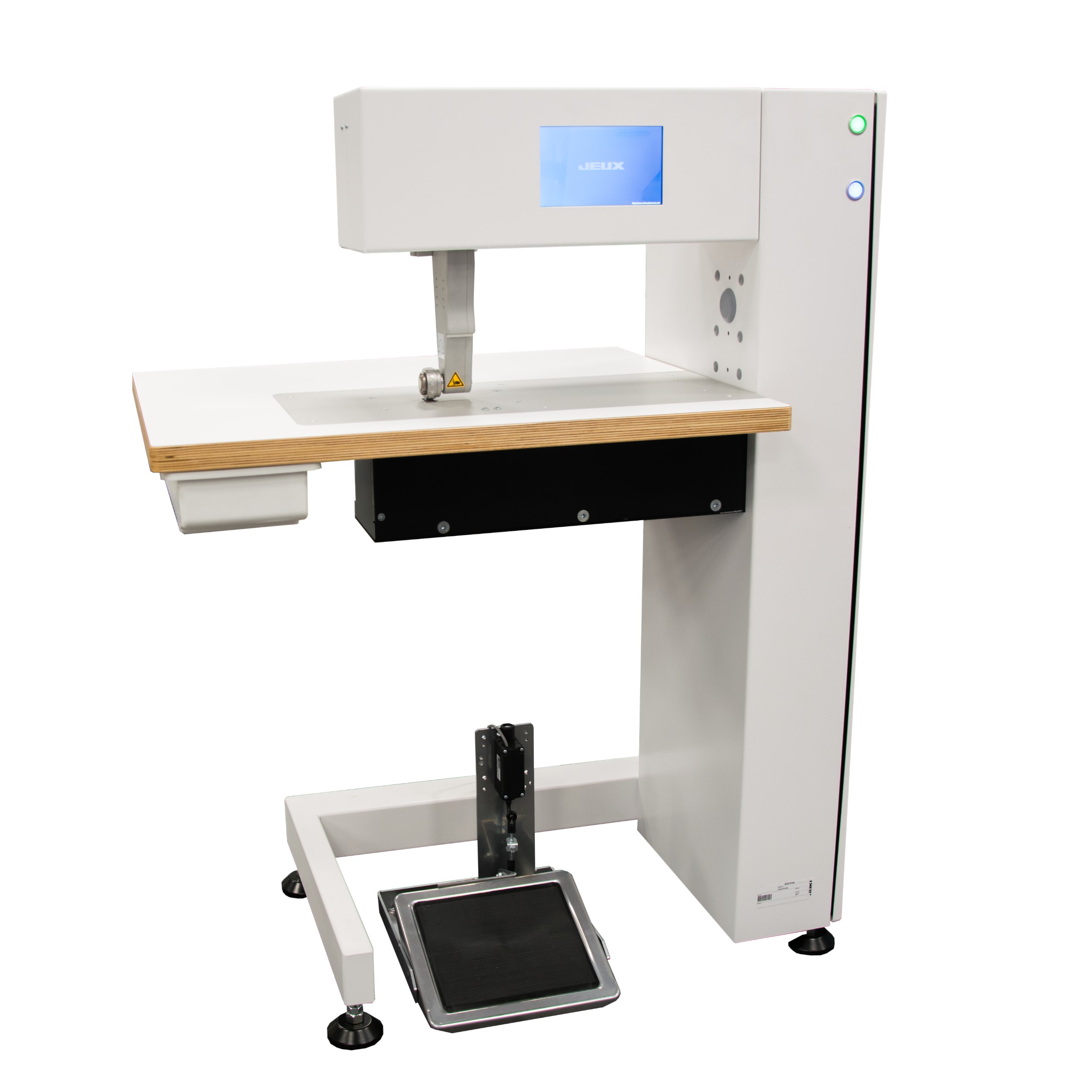

JEUX 7510

The new JEUX-7510 uses high tech components to make precise working at the highest level possible. Numerous features allow an individual machine configuration form maximum productivity and reproductivity in serial production.

The new JEUX-7510 sets a new standard in the world of welding products. This includes the brand-new software package, which facilitates operation for both beginners and experienced professionals. The newly developed JEUX-7510 ultrasonic-package ensures absolutely precise and constant amplitude-values even at high speeds and sensitive materials.

Accesories

Border Seaming
In some applications, it is necessary to combine a wide weld seam with a closely attached cutting seam. This is where JEUX-7510 edge trimmer comes into operation. It allows both processes in one step. The pressure force of the welding seam and the cutting seam can be set separately. The new JEUX-7510 systems enable maximum reproducibility through its electrical pressure control. All parameters can be saved per product and seam.

C/W-Package
In addition to continous welding, the JEUX-7510 machine offers the possibility of Cut & Seal. This very flexible technique allows simultaneous cutting and welding of most thermoplastic materials. Of course, a simple separation via ultrasonic with simultaneous edge sealing is also possible. JEUX-7510 offers a wide and steadily increasing spectrum of accesories for this purpose.

Cutting Wheels
There are numerous standard cutting wheels avaliable. All cutting wheels are mad of an apropriate material with corresponding hardening. The following wheel diameter are avaliable: 20 mm, 25 mm, 40mm, and 65mm.

Anvil Wheels
JEUX-7510 provides lots of different anvil-wheels, which can be changed in quickly. Basically every structure can be produced upon request of the customer (for example the embossing of a corporate logo).

A new trend demands new challenges

Elastic Overlap Seams
Achieve highest omnidirectional elasticity by selective welding structure and avoid rough surfaces.

Wear Comfort
No rubbing, no pinching. Extremely flat seams guarantee highest wear comfort and assure long life elasticity.

Design Diversity
A wide range in the seam optics by the use of individualized anvil wheel-structures.

Seamless Welding
The ultra-thin CW-seam can be taped in an additional step to increase maximum durability. The seam is airproof and not noticeable for the skin.

Airproof Overlap Seams
Safety cloth is welded by a 10mm overlap seam. Durability and tightness can be achieved in one working step.

Wheel Database
A core component of the JEUX-7510 machine is the wheel database. Every avaliable anvil and cutting wheel is visualized and can be selected per product and seam. Behind each wheel a multitude of parameters are stored. That way machine specific calibrations needed for each wheel shape can be loaded instantly. The database can be updated online by cloud-services or via USB Flash Drive.
